For the Heavy-Duty Jobs

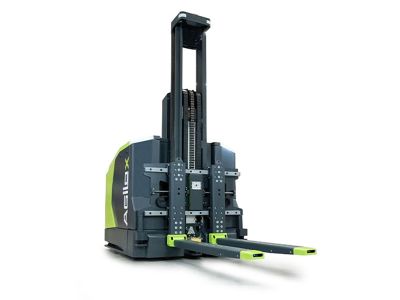

The Autonomous Counterbalance Forklift OCF is a True Powerhouse.
The AGILOX OCF is the logical continuation of our mission to optimize (intra)logistics concepts. With AGILOX's new autonomous counterbalance forklift, it's now possible to transport even heavier loads up to 1,500 kg.
360 degree all-around protective field
With the new version of obstacle avoidance, it's now possible to actively maneuver around obstacles. The sensor monitoring covers a 180° area in the main driving direction, with a radius of approximately 10 m, accounting for any blind spots caused by installation. The monitoring range is limited to 1,900 mm upwards.
The monitoring of the near-ground area is limited to 80 mm above the floor to ensure robustness against uneven surfaces.
Basic Requirements & Driving Surface Design
- Industrial floor without steps
- Gap < 5 mm
- Indoor area
- No stacking / unstacking of pallets
- No direct retrieval from a shelf
- No pick-up of closed pallets possible (e.g., Chep, etc.)
OCF Variations
OCF 1400
AGILOX OCF Basic Vehicle with Lift Forks
- Fork length: 1,400 mm (55.1 in)
- Max. lifting weight: 1,500 kg (3,306 lbs)
- Max. lifting height: 1,600 mm (63 in)
- Max. station height: 1,450 mm (57.1 in)
OCF LC
AGILOX OCF Basic Vehicle with Reduced Lift Mast Height
- Fork length: 1,200 mm (47.2 in)
- Max. lifting weight: 1,500 kg (3,306 lbs)
- Max. lifting height: 1,200 mm (47.2 in)
- Max. station height: 1,050 mm (41.3 in)
Euro pallet
Industrial pallet
Euro half-pallet
Closed-deck pallet
