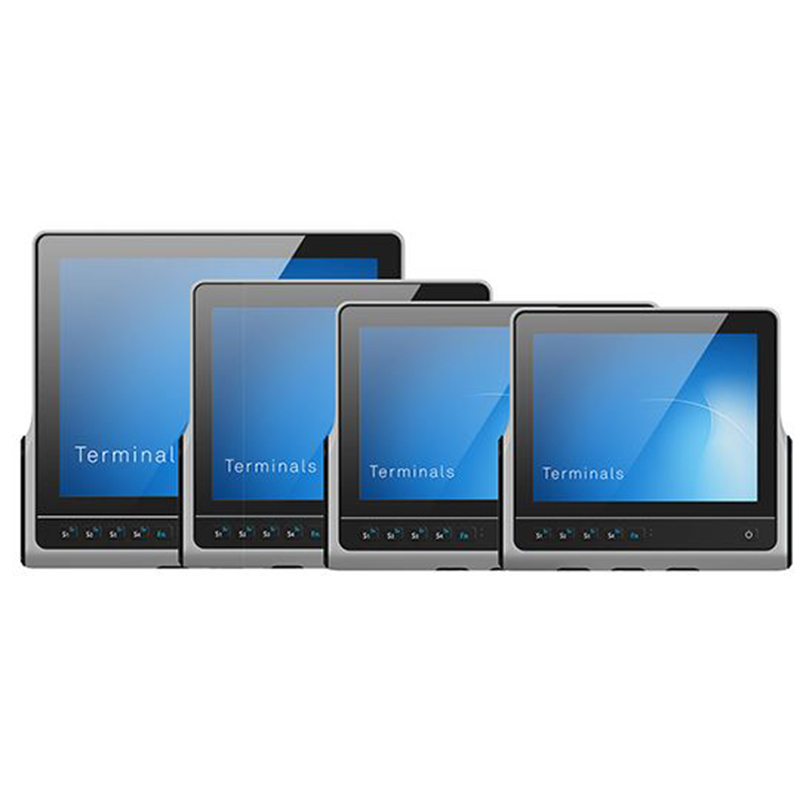

Vehicle Mounted Terminals
Slim, Robust, and Powerful
You can count on it. For over three decades, ADS-TEC has consistently delivered up-to-date, high-performance PC technology in an industrial-grade design. Our comprehensive development depth and state-of-the-art processes form the basis for customer-specific products and individual solutions. Technology 100% Made in Germany—a good feeling for ADS-TEC customers.

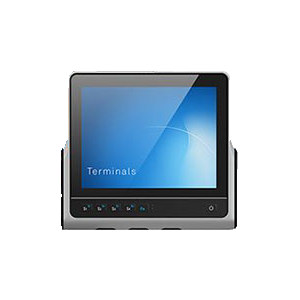

ads-tec VMT9000
Remarkable advantages
Powerful
- Equipped with the latest Intel Atom® x7-E3950 (Apollo Lake) Series
Sunlight readable
- Optimal readability under difficult visibility conditions
- Reliable use, even outdoors
Touchscreen
- Choice between resistive and capacitive touchscreens
- Both touchscreen variants operable with gloves
- Extremely break-resistant (IK08) and abrasion-proof fronts
Robustness
- IP66 certified
- Vibration and shock resistance according to class 5M3
- Wide operating temperature range from -30 °C to +60 °C
- Stable die-cast aluminum housing
- Resistant to a variety of chemicals and UV radiation, as well as weathering
- Screwless design for simplified cleaning
Power Supply
- Wide-range power supply for flexible connection to a 12 V – 48 V power source
- Voltage input range 9 – 60 V
Sensors & Data Security
- Automatic brightness adjustment
- Integrated proximity and acceleration sensor
- User identification via RFID
- Smartcard-secured VPN tunnel and integration into the ADS-TEC IoT service platform Big-LinX
Wireless – WLAN, Bluetooth, WWAN, and GPS
- Latest WLAN standards for optimal roaming behavior
- External antenna connectable for challenging transmission and reception conditions
- WWAN and GPS for outdoor applications
- Bluetooth for connecting scanners, etc.
USV
- USV-function for uninterrupted work, even when the forklift battery is being replaced
- UPS integrated into the interface cover, making it easy to retrofit
- Bridges approximately 10 – 15 minutes of runtime
Ignition Function on Vehicles
- Terminal powers on via ignition voltage
- When the ignition key is removed, the system is optionally locked or shut down
